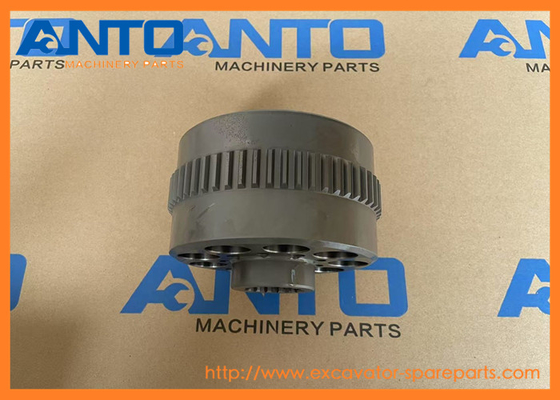

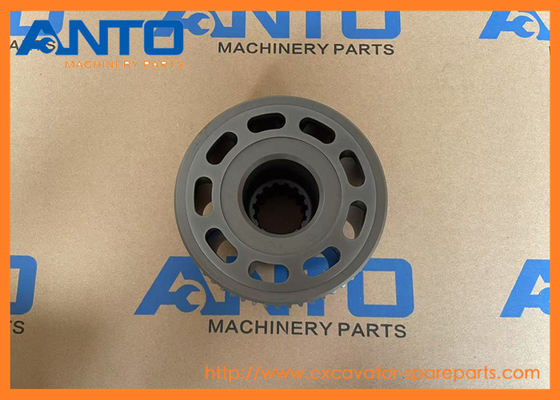

| Category: | HYUNDAI Excavator Swing Motor | Parts name: | Cylinder block |
|---|---|---|---|
| Parts number: | XKAY-00530 XKAY00530 | Models: | R200W7 |
| Lead time: | Stock for soon delivery | Warranty: | 6/12 Months |
| प्रमुखता देना: | HYUNDAI R200W7 excavator swing motor,excavator cylinder block swing motor,XKAY-00530 excavator motor replacement |
||
| spare parts name | Cylinder block |
| Equipment Model | R200W7 |
| Parts Category | HYUNDAI Excavator Swing Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
1.Structural Housing:
As a "block," it provides a rigid, precision-machined framework that houses internal components such as pistons, valves, or hydraulic chambers. It maintains the alignment and positioning of these parts to ensure smooth operation.
2.Fluid Containment & Channeling:
In hydraulic systems, the cylinder block often contains intricate internal passages (oil galleries) that direct hydraulic fluid to and from pistons, valves, or other components. This controlled flow is essential for transmitting pressure and power within the system.
7 SERIES WHEEL EXCAVATOR R200W7
7-SERIES CRAWLER EXCAVATOR R210LC7 R210NLC7
| 31N6-60110 CYLINDER ASS'Y |
| R200W7, R210LC7, R210LC7H, R210NLC7 |
| 31N6-60115 CYLINDER ASS'Y |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R290LC7A, R305LC7, R450LC7, R450LC7A, RC215C7, RC215C7H, RD210-7, RD220-7 |
| ZGAQ-02363 CYLINDER-STEERING |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| XKAQ-00671 CYLINDER BLOCK |
| R210LC7, R210LC7A, R210LC7H, R210NLC7A |
| XKAY-01093 CYLINDER BLOCK |
| R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7, ... |
| 31N6-50111 CYLINDER ASS'Y,RH |
| R210LC7, R210LC7H |
| 31N6-50121 CYLINDER ASS'Y,LH |
| R210LC7, R210LC7H |
| 31N6-50115 CYLINDER ASS'Y,RH |
| R210LC7, R210LC7A, R210LC7H, R215LC7, RC215C7, RC215C7H, RD210-7, RD210-7V, RD220-7 |
| 31N6-50125 CYLINDER ASS'Y,LH |
| R210LC7, R210LC7A, R210LC7H, R215LC7, RC215C7, RC215C7H, RD210-7, RD210-7V, RD220-7 |
| 31N6-66100 CYLINDER ASS'Y |
| R210LC7, R290LC7 |
| 31N6-66200 CYLINDER ASS'Y |
| R210LC7 |
| 31N6-66201 CYLINDER ASS'Y |
| R210LC7, R210LC7A, R210LC7H, RC215C7, RC215C7H, RD220-7 |
| XKAY-00634 CYLINDER BLOCK KIT |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235... |
| XJDB-00025 CYLINDER ASSY |
| R200W7, R210LC7, R210NLC7, R250LC7, R450LC7 |
| XJBN-00066 CYLINDER ASSY(LH) |
| R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, RC215C7, RC215C7H, RD220-7 |
| XJBN-00063 CYLINDER ASSY(RH) |
| R200W7, R210LC7, R210LC7H, R210NLC7, R250LC7, RC215C7, RC215C7H, RD220-7 |
| XKBP-00118 CYLINDER ASSY |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, RC215C7, RC215C7H |
| XKBP-00061 CYLINDER-QUICK CLAMP |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, RC215C7, RC215C7H |
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | @ | [1] | SWING MOTOR ASSY | |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| 1 | XKAY-00520 | [1] | BODY | 31N6-10210-01 |
| 1 | XKAY-00637 | [1] | BODY | 31N6-10210-02 |
| 1 | XKAY-02096 | [1] | BODY | 31N6-10210-02 |
| K2. | XKAY-00521 | [1] | SEAL-OIL | |
| 3 | XKAY-00522 | [1] | BEARING-ROLLER | |
| 4 | XKAY-00523 | [1] | RING-SNAP | |
| 5 | XKAY-00524 | [1] | SHAFT | |
| 6 | XKAY-00525 | [1] | BUSHING | |
| 7 | XKAY-00526 | [1] | RING-STOP | |
| 8 | XKAY-00286 | [1] | PIN | 31N6-10210 |
| 8 | XKAY-00625 | [1] | PIN | 31N6-10210-01 |
| 9 | XKAY-00527 | [1] | PLATE-SHOE | |
| A. | XKAY-00528 | [1] | ROTARY KIT | 31N6-10210-01 |
| A. | XKAY-00635 | [1] | ROTARY KIT | 31N6-10210-02 |
| A-A. | XKAY-00529 | [1] | CYLINDER BLOCK KIT | 31N6-10210-01 |
| A-A. | XKAY-00634 | [1] | CYLINDER BLOCK KIT | 31N6-10210-02 |
| 10 | XKAY-00530 | [1] | CYLINDER BLOCK | 31N6-10210-01 |
| 10 | XKAY-00633 | [1] | BLOCK-CYLINDER | 31N6-10210-02 |
| 11 | XKAY-00531 | [9] | SPRING | |
| A-B. | XKAY-00532 | [1] | RETAINER KIT | |
| 12 | XKAY-00533 | [1] | GUIDE-BALL | |
| 13 | XKAY-00534 | [1] | PLATE-SET | |
| A-C. | XKAY-00535 | [1] | PISTON KIT | |
| N14. | XKAY-00536 | [9] | PISTON ASSY | |
| 15 | XKAY-00537 | [3] | PLATE-FRICTION | |
| 16 | XKAY-00538 | [3] | PLATE | |
| 17 | XKAY-00539 | [1] | PISTON-BRAKE | |
| 17 | XKAY-00631 | [1] | PISTON-BRAKE | 31N6-10210-01 |
| 17 | XKAY-00632 | [1] | PISTON-BRAKE | 31N6-10210-02 |
| K18. | XKAY-00468 | [1] | O-RING | |
| K19. | XKAY-00540 | [2] | O-RING | |
| 20 | XKAY-00541 | [20] | SPRING | |
| 21 | XKAY-00542 | [1] | COVER-REAR | 31N6-10210 |
| 21 | XKAY-00630 | [1] | COVER-REAR | 31N6-10210-01 |
| 22 | XKAY-00543 | [1] | BEARING-NEEDLE | |
| 23 | XKAY-00382 | [2] | PIN | |
| 24 | XKAY-00544 | [1] | PLATE-VALVE | |
| 27 | XKAY-00546 | [4] | BOLT-WRENCH | |
| 28 | XKAY-00309 | [2] | PLUG | |
| K29. | XKAY-00547 | [2] | RING-BACK UP | |
| K30. | XKAY-00310 | [2] | O-RING | |
| 31 | XKAY-00311 | [2] | SPRING | |
| 32 | XKAY-00312 | [2] | CHECK | |
| 33 | XKAY-00313 | [2] | RELIEF VALVE ASSY | |
| 34 | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS | |
| 35 | XKAY-00315 | [1] | TIME DELAY VALVE ASSY | |
| 36 | XKAY-00149 | [3] | BOLT-WRENCH | |
| 37 | XKAY-00316 | [1] | PLUG | |
| K38. | XKAY-00151 | [3] | O-RING | |
| 39 | XKAY-00140 | [1] | PLUG | |
| 41 | XKAY-00548 | [1] | PLUG | |
| N42. | XKAY-00549 | [1] | NAME PLATE | |
| 43 | XKAY-00277 | [2] | RIVET | |
| 44 | XKAY-01986 | [1] | GAUGE-LEVEL | |
| 45 | XKAY-00551 | [1] | FLANGE | |
| K46. | XKAY-00552 | [2] | O-RING | |
| 47 | XKAY-00322 | [2] | PLUG | |
| K48. | XKAY-00324 | [2] | O-RING | |
| K49. | XKAY-00247 | [2] | O-RING | |
| K50. | XKAY-00248 | [2] | RING-BACK UP | |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4111 |
| K. | XKAY-00553 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
