उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Engine model: | C12 C15 3196 | Machine model: | 966G II 972G II |
|---|---|---|---|
| Application: | Wheel Loader | Product name: | Wiring Harness |
| Part number: | 222-4086 2224086 | Packing: | Standard Export Carton |
| प्रमुखता देना: | Wheel Loader wiring harness,C12 C15 electric parts,966G II 972G II wiring |
||
| Name | Wiring Harness |
| Parts No | 222-4086 2224086 |
| Machene Model | 814F 966G II 972G II |
| Category | Electric Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |

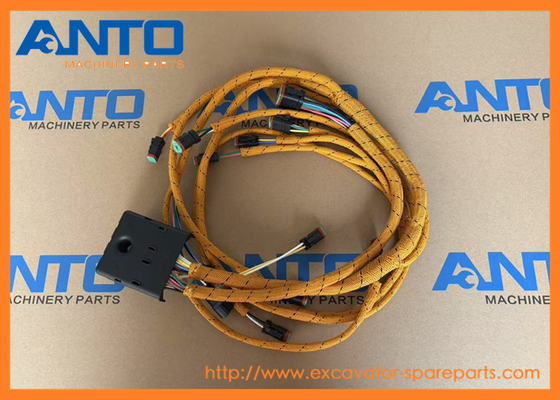

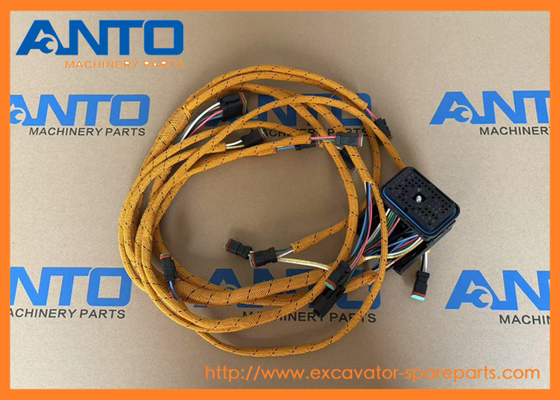

A wiring harness, also known as a cable harness or wire loom, is an organized assembly of electrical cables and connectors. The 222-4086 wiring harness is responsible for efficiently and reliably transmitting electrical power and signals within Caterpillar equipment, linking different electrical components to ensure they operate as intended.
| 1982713 HARNESS AS-ENGINE |
| 120K, 12K, 140G, 140K, 140K 2, 140M, 160K, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 328D LCR, 329D, 329D L, 329D LN, 525C, 535C, 545C, 573, 584, 815B, 95... |
| 2225917 HARNESS AS-ENGINE |
| 120K, 120K 2, 12K, 12M, 140G, 140K, 140K 2, 140M, 160K, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 525C, 535C, 545... |
| 3812499 HARNESS AS-WIRING |
| 120K, 120K 2, 12K, 140K, 140K 2, 160K, 324D, 324D FM, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 525C, 535C, 545C, 950H, 962H, AP-1055D, BG-2... |
| 2897459 HARNESS AS-REAR LIGHTING |
| 950H, 962H, 966H, 972H |
| 3039296 HARNESS AS-LIGHTING |
| 950H, 962H, 966H, 972H |
| 2750025 HARNESS AS-SENSOR |
| 950H, 962H |
| 2463400 HARNESS AS-CONTROL |
| 950H, 962H, 980H |
| 2662830 HARNESS AS-LIGHTING |
| 950H |
| 2662831 HARNESS AS-LIGHTING |
| 950H |
| 2719448 HARNESS AS-LIGHTING |
| 950H |
| 3151978 HARNESS AS-LIGHTING |
| 950H |
| 3916313 HARNESS AS-WIRING |
| 950H, 962H |
| 2983649 HARNESS AS-CHASSIS |
| 950H, 962H, IT62H |
| 2478475 HARNESS AS-SENSOR |
| 950H, 962H, IT62H |
| 2478474 HARNESS AS-SENSOR |
| 950H, 962H, IT62H |
| 3137492 HARNESS AS-WIRING |
| 631G, 637G |
| 2637126 HARNESS AS-CHASSIS |
| 631G, 637G |
| 2472831 HARNESS AS-FUEL TANK |
| 631G, 637G |
| 2714036 HARNESS AS-LIGHTING |
| 950H, 962H, IT62H |
| 2714035 HARNESS AS-LIGHTING |
| 950H, 962H, IT62H |
| 2714017 HARNESS AS-LIGHTING |
| 950H, 962H, 966H, 972H, IT62H |
| 2654407 HARNESS AS-FRONT CHASSIS |
| IT62H |
| 3240677 HARNESS AS-STARTING AID |
| 950H, 962H, IT62H |
| 2636668 HARNESS AS-STARTING AID |
| 950H, 962H, IT62H |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2M-7077 | [1] | SPACER (0.406X0.62X0.37-IN THK) | |
| 2 | 3E-7448 | [1] | CONNECTOR | |
| 3 | 3S-2093 | [6] | STRAP-CABLE | |
| 4 | 9X-0262 | [2] | ADAPTER | |
| 5 | 197-8391 Y | [1] | SENSOR GP-TEMPERATURE (FUEL) | |
| 6 | 197-8392 Y | [1] | SENSOR GP-TEMPERATURE (WATER, COOLANT) | |
| 7 | 197-8393 Y | [1] | SENSOR GP-PRESSURE (ATMOSPHERIC) | |
| 8 | 197-8394 Y | [1] | SENSOR GP-PRESSURE (ENGINE OIL) | |
| 9 | 197-8396 Y | [1] | SENSOR GP-SPEED (CRANKSHAFT TIMING) | |
| 10 | 197-8397 Y | [1] | SENSOR GP-SPEED (CAMSHAFT TIMING) | |
| 11 | 219-6540 | [1] | HARNESS AS-SENSOR (FUEL PRESSURE) | |
| 102-8803 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2260 | [1] | KIT-CONNECTING PLUG (3-PIN) | ||
| (INCLUDES PLUG AS & WEDGE) | ||||
| 12 | 222-4086 | [1] | HARNESS AS (ENGINE ELECTRONIC) | |
| 102-8802 | [1] | KIT-RECEPTACLE (2-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 102-8803 | [1] | KIT-RECEPTACLE (3-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 155-2255 | [1] | KIT-CONNECTING PLUG (12-PIN) | ||
| (INCLUDES PLUG AS & WEDGE) | ||||
| 155-2260 | [3] | KIT-CONNECTING PLUG (3-PIN) | ||
| (EACH INCLUDES PLUG AS & WEDGE) | ||||
| 155-2270 | [7] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS & WEDGE) | ||||
| 160-7690 | [1] | PLUG AS-CONNECTOR (70-PIN) | ||
| 3S-2093 | [2] | STRAP-CABLE (MODULE CONNECTOR) | ||
| 13 | 067-2551 | [1] | CLIP | |
| 14 | 197-8395 Y | [1] | SENSOR GP-PRESSURE (AIR INLET MANIFOLD) | |
| 15 | 2V-3216 | [2] | CLIP | |
| 16 | 197-8391 Y | [1] | SENSOR GP-TEMPERATURE (AIR INLET MANIFOLD) | |
| 17 | 3E-4353 | [2] | WASHER-HARD (11X25X3-MM THK) | |
| 18 | 4D-7794 | [1] | CLIP | |
| 19 | 4K-8864 | [2] | CLIP (LOOP) | |
| 20 | 4P-8134 | [3] | CLIP (LADDER) | |
| 21 | 5P-4115 | [2] | WASHER-HARD (7.2X19X2-MM THK) | |
| 22 | 6V-5048 | [3] | SEAL-O-RING | |
| 23 | 6V-5049 | [1] | SEAL-O-RING | |
| 24 | 6V-5215 M | [2] | BOLT (M8X1.25X16-MM) | |
| 25 | 6V-5839 | [1] | WASHER (11X21X2.5-MM THK) | |
| 26 | 6V-6317 M | [2] | BOLT (M10X1.5X20-MM) | |
| 27 | 6V-7981 M | [1] | BOLT (M10X1.5X70-MM) | |
| 28 | 6V-8214 M | [2] | BOLT (M6X1X20-MM) | |
| 29 | 6V-8837 M | [1] | BOLT (M6X1X16-MM) | |
| 30 | 8M-2770 | [1] | CLIP (LOOP) | |
| 31 | 8M-2771 | [1] | CLIP | |
| 32 | 9S-8002 | [1] | PLUG (7/16-20-THD) | |
| 33 | 9M-1974 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| 34 | 9S-4191 | [1] | PLUG (9/16-18-THD) | |
| 35 | 9X-8267 | [1] | WASHER (6.6X12X2-MM THK) | |
| 36 | 197-8394 Y | [1] | SENSOR GP-PRESSURE (FUEL) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
