उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| वर्ग: | चिकनाई तेल फिल्टर | भाग संख्या: | 6120-50-5103 6120505103 |
|---|---|---|---|
| प्रोडक्ट का नाम: | तेल निस्यंदक | इंजन नंबर: | 4D120 S6D155 |
| आवेदन: | खोदक मशीन | समय सीमा: | डिलीवरी के लिए 1-3 दिन |
| पैकिंग: | मानक निर्यात कार्टन | ||
| प्रमुखता देना: | Komatsu excavator oil filter,4D120 S6D155 oil filter,Excavator spare parts filter |
||

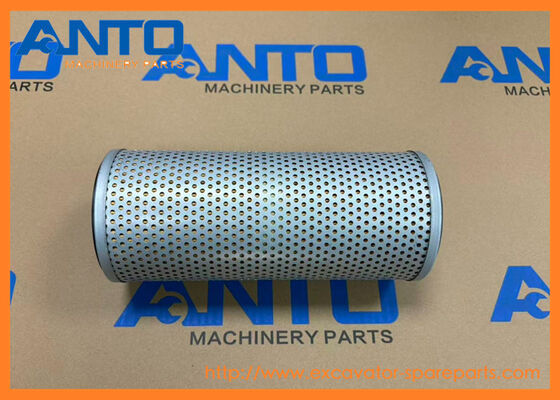

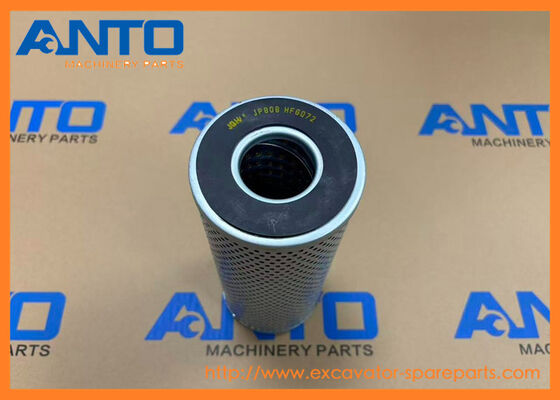

6120-50-5103 6120505103 Oil Filter KOMATSU Excavator Spare Parts For 4D120 S6D155
Specifiion
| Category | Lubricating Oil Filter |
| Name | Oil Filter |
| Parts No | 6120-50-5103 6120505103 |
| Engine Number | 4D120 S6D155 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Oil Inlet: When the engine runs, pressurized oil (from the oil pump) enters the filter through inlet ports in the metal housing. |
| 2. Filtration: Oil flows through the cellulose-synthetic media, which traps contaminants (metal shavings, dust, sludge) while allowing clean oil to pass through. | |
| 3. Clean Oil Outlet: Filtered oil exits the filter through the center tube and flows to the engine’s crankshaft, bearings, camshaft, and other moving parts – lubricating and cooling them. | |
| 4. Clog Protection: If the media clogs (pressure drop exceeds 150–200 kPa), the pressure relief valve opens, directing unfiltered oil to the engine (temporary safeguard to prevent oil starvation). | |
| 5. Dry Start Prevention: When the engine stops, the anti-drainback valve closes, keeping oil in the filter. This ensures oil is immediately available to engine parts on the next startup. | |
| Core Functions | 1. Contaminant Removal: Traps metal particles (from wear), dust (from job sites), and sludge (from oil oxidation) – prevents abrasive damage to engine bearings and pistons. |
| 2. Lubrication Protection: Ensures clean oil circulates to moving parts – reduces friction and heat, extending engine service life (up to 10,000+ operating hours for SAA6D-series engines). | |
| 3. Dry Start Prevention: Anti-drainback valve eliminates dry starts – a common cause of premature bearing failure in cold weather or after long shutdowns. | |
| 4. System Safety: Pressure relief valve acts as a fail-safe during filter clogging – prevents engine seizure due to oil starvation. | |
| 5. Oil Condition Maintenance: Reduces oil degradation by removing sludge and carbon deposits – extends the life of the engine oil (aligns with Komatsu’s 250-hour oil change interval). |
ENGINES 4D120 S6D155 Komatsu
| ND090150-0390 ELEMENT |
| 4D120, S4D120 |
| 6110-70-6202 ELEMENT ASS'Y |
| 4D120, 4D130, S4D120, S4D130, S4D155, S6D155 |
| ND090150-2920 ELEMENT |
| 4D105 |
| 600-651-1421 ELEMENT |
| 4D105, S4D105 |
| ND090150-1820 ELEMENT |
| 4D105 |
| 600-181-8400 ELEMENT ASS'Y |
| 4D105, S4D105 |
| 457-772 ELEMENT |
| 4D88E |
| YM129619-12520 ELEMENT |
| 4D88E |
| 600-181-2461 ELEMENT,INNER |
| 4D130 |
| 6114-50-5100 ELEMENT ASS'Y |
| 4D130, S4D130 |
| Pos. | Part No | Qty | Parts name | Comments |
| 6110-53-5103 | [1] | OIL FILTER ASS'Y Komatsu China | ||
| ["SN: 84282-UP"] analogs:["6110505005", "6110505003", "6110505004", "6110505002", "6110505006", "6110535100", "6110535101", "6110535102", "6112505004", "6112535101"] |$0. | ||||
| 6110-53-5102 | [1] | OIL FILTER ASS'Y Komatsu China | ||
| ["SN: 69225-84281"] analogs:["6110505005", "6110505003", "6110505004", "6110505002", "6110505006", "6110535103", "6110535100", "6110535101", "6112505004", "6112535101"] |$1. | ||||
| 6110-53-5101 | [1] | OIL FILTER ASS'Y Komatsu China | ||
| ["SN: 54849-69224"] analogs:["6110505005", "6110505003", "6110505004", "6110505002", "6110505006", "6110535103", "6110535100", "6110535102", "6112505004", "6112535101"] |$2. | ||||
| 6110-53-5100 | [1] | OIL FILTER ASS'Y Komatsu China | ||
| ["SN: 50024-54848"] analogs:["6110505005", "6110505003", "6110505004", "6110505002", "6110505006", "6110535103", "6110535101", "6110535102", "6112505004", "6112535101"] |$3. | ||||
| 1. | 6110-53-5112 | [1] | BRACKET Komatsu China | |
| ["SN: 84282-UP"] analogs:["6110535111"] | ||||
| 1. | 6110-53-5111 | [1] | BRACKET Komatsu China | |
| ["SN: 54849-84281"] analogs:["6110535112"] | ||||
| 1. | 6110-53-5110 | [1] | BRACKET Komatsu China | |
| ["SN: 50024-54848"] | ||||
| 2. | 6110-53-5910 | [1] | PLUG Komatsu | 0.000 kg. |
| ["SN: 69225-UP"] | ||||
| 2. | 6003100-9-10 | [1] | PLUG Komatsu China | |
| ["SN: 50024-69224"] | ||||
| 3. | 07003-01419 | [1] | GASKET (K2) Komatsu | 0.008 kg. |
| ["SN: 50024-UP"] | ||||
| 4. | 6120-51-5610 | [1] | COVER Komatsu China | |
| ["SN: 50024-UP"] analogs:["6120505200"] | ||||
| 5. | 6110-53-5620 | [1] | BOLT Komatsu China | |
| ["SN: 69225-UP"] analogs:["6120515620"] | ||||
| 5. | 6120-51-5620 | [1] | BOLT Komatsu China | |
| ["SN: 50024-69224"] analogs:["6110535620"] | ||||
| 6. | 6120-51-5650 | [1] | SPRING Komatsu China | |
| ["SN: 50024-UP"] | ||||
| 7. | 6120-51-5630 | [1] | SPRING Komatsu China | |
| ["SN: 50024-UP"] | ||||
| 8 | 6120-51-5640 | [1] | RETAINER Komatsu China | |
| ["SN: 50024-UP"] | ||||
| 9. | 6110-51-5680 | [1] | WASHER Komatsu China | |
| ["SN: 80266-UP"] analogs:["6003200351"] | ||||
| 9 | 01641-21626 | [1] | WASHER Komatsu | 0.01 kg. |
| ["SN: 50024-80265"] analogs:["0164101626"] | ||||
| 6120-50-5103 | [1] | ELEMENT ASS'Y Komatsu | 0.45 kg. | |
| ["SN: 50024-UP"] |$18. | ||||
| 11 | 6120-51-5180 | [1] | GASKET (K2) Komatsu | 0.01 kg. |
| ["SN: 50024-UP"] | ||||
| 12 | 6120-51-5710 | [2] | O-RING (K2) Komatsu China | |
| ["SN: 50024-UP"] | ||||
| 13. | 6110-53-5230 | [1] | PLUG Komatsu | 0.15 kg. |
| ["SN: 69225-UP"] analogs:["6110515230"] | ||||
| 13. | 6120-51-5230 | [1] | PLUG Komatsu | 0.15 kg. |
| ["SN: 50024-69224"] analogs:["6110515230", "6110535230"] | ||||
| 14. | 6120-51-5411 | [1] | VALVE Komatsu China | |
| ["SN: 50024-UP"] analogs:["6D115A5526"] | ||||
| 15. | 6110-51-5450 | [1] | SPRING Komatsu China | |
| ["SN: 50024-UP"] | ||||
| 16. | 6110-51-5440 | [1] | GASKET (K2) Komatsu China | |
| ["SN: 50024-UP"] | ||||
| 17. | 6110-53-5510 | [1] | VALVE Komatsu China | |
| ["SN: 50024-UP"] analogs:["4D120A5534", "6110515510", "6110515540", "6110515570", "6110515530", "6111515570"] | ||||
| 18. | 6110-53-5520 | [1] | PLUG Komatsu China | |
| ["SN: 69225-UP"] analogs:["6D120A5532", "6110515520"] | ||||
| 18. | 6110-51-5520 | [1] | PLUG Komatsu China | |
| ["SN: 50024-69224"] analogs:["6D120A5532", "6110535520"] | ||||
| 19. | 01580-00504 | [2] | NUT Komatsu China | |
| ["SN: 69225-UP"] analogs:["SUBF248105000", "3819781701", "5653213530"] | ||||
| 19. | 01500-60504 | [2] | NUT Komatsu China | |
| ["SN: 50024-69224"] | ||||
| 20. | 01601-00513 | [2] | WASHER Komatsu | 0.005 kg. |
| ["SN: 50024-UP"] | ||||
| 21. | 6110-51-5580 | [1] | GASKET (K2) Komatsu | 0.004 kg. |
| ["SN: 50024-UP"] | ||||
| 23. | 6110-51-5550 | [5] | SPACER Komatsu | 0.005 kg. |
| ["SN: 50024-UP"] | ||||
| 24. | 6110-51-5560 | [1] | SPRING Komatsu China | |
| ["SN: 50024-UP"] analogs:["4D120A5536"] | ||||
| 25 | 6110-53-5810 | [1] | GASKET (K2) Komatsu China | |
| ["SN: 50024-UP"] analogs:["6110535811"] | ||||
| 26 | 01010-31230 | [3] | BOLT Komatsu | 0.043 kg. |
| ["SN: 50024-UP"] analogs:["01010E1230", "0101061230"] | ||||
| 27 | 01011-31200 | [1] | BOLT Komatsu | 0.104 kg. |
| ["SN: 50024-UP"] analogs:["0101181200", "801015583", "0101151200"] | ||||
| 28 | 01602-01236 | [4] | WASHER Komatsu | 0.007 kg. |
| ["SN: 50024-UP"] | ||||
| 29 | 09646-00125 | [1] | PLATE, CAUTION Komatsu China | |
| ["SN: 60817-UP"] analogs:["6110832130", "6110832135", "6610811350", "6610811352", "6610811450"] | ||||
| 29 | 6110-83-2130 | [1] | PLATE, CAUTION Komatsu China | |
| ["SN: 50024-60816"] analogs:["0964600125", "6110832135", "6610811350", "6610811352", "6610811450"] | ||||
| 30 | 6110-83-2210 | [1] | PLATE, CAUTION Komatsu China | |
| ["SN: 63789-UP"] analogs:["6110812210"] | ||||
| 30 | 6110-81-2210 | [1] | PLATE, CAUTION Komatsu China | |
| ["SN: 50024-63788"] analogs:["6110832210"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
