उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| वर्ग: | इंजन पार्ट्स, कंट्रोल जीपी-ट्रांसमिशन हाईड | भाग संख्या: | 263-4081 2634081 |
|---|---|---|---|
| प्रोडक्ट का नाम: | तारों का उपयोग | मशीन नंबर: | 572आर II 583टी 587टी |
| आवेदन: | खोदक मशीन | समय सीमा: | डिलीवरी के लिए 1-3 दिन |
| पैकिंग: | मानक निर्यात कार्टन | ||
| प्रमुखता देना: | 3176C C15 wiring harness,Excavator engine wiring harness,572R II 583T 587T harness |
||

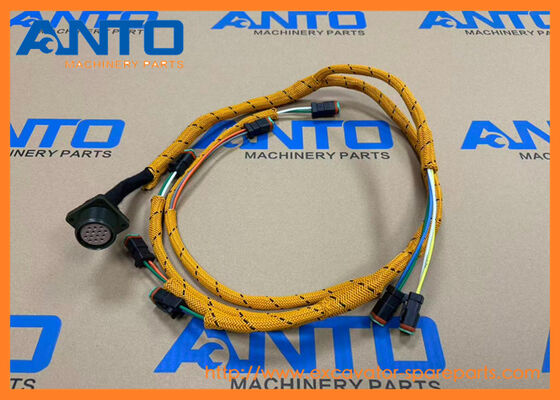

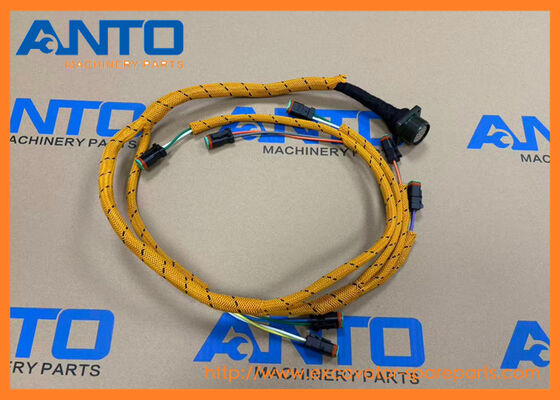

263-4081 2634081 Wiring Harness Excavator Engine Parts Fit For 3176C C15 572R II 583T 587T
Specifiion
| Category | Control Gp-Transmission Hyd, Engine Parts |
| Name | Wiring Harness |
| Parts No | 263-4081 2634081 |
| Engine Number | 3176C C15 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Power Distribution: The harness routes 24V DC power from the battery/alternator to high-demand components (ECU, fuel injectors, hydraulic valves) via heavy-gauge wires (8–12 AWG), ensuring no voltage drop under load. |
| 2. Signal Transmission: Low-gauge wires (18–24 AWG) carry analog/digital signals between the ECU and sensors (e.g., engine temperature, oil pressure) – enabling real-time performance monitoring. | |
| 3. Ground Management: Dedicated ground circuits (large-gauge wires) provide a stable return path for all components, preventing electrical noise and ensuring consistent operation. | |
| 4. Protection: Insulation and sheathing block moisture, debris, and chemicals; shielded circuits maintain signal integrity; strain reliefs prevent mechanical damage – all critical for long-term reliability in harsh environments. | |
| Core Functions | 1. Electrical Integration: Centralizes power and signal routing, replacing messy individual wires – simplifies assembly, maintenance, and repairs. |
| 2. Reliable Communication: Ensures uninterrupted signal flow between the ECU and components – prevents equipment shutdowns due to electrical failures. - Component Protection: Delivers regulated power to sensitive electronics (e.g., telematics modules) – avoids damage from voltage spikes. | |
| 3. Safety Compliance: Meets CAT safety standards (e.g., flame-retardant insulation, short-circuit protection) – reduces fire risk in high-heat areas. | |
| 4. Diagnostics Support: Enables the ECU to detect wiring faults (e.g., open circuits, short circuits) via built-in resistance checks – triggers dashboard warnings for timely repairs. |
PIPELAYER 572R II 583T 587T
TRACK-TYPE TRACTOR D6R III D6T D7R II D8T C.ate.rpillar.
| 4190841 HARNESS AS-ENGINE |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5... |
| 2358202 HARNESS AS-ENGINE |
| 160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 511, 521, 522, 532, 541, 551, 552, 627G, 637D, 637E, 637G, 814F II, 815F II, 816F II, 973D, C9, CX31... |
| 3239140 HARNESS AS-ENGINE |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, ... |
| 1212844 HARNESS ASSEMBLY-CRANK |
| 561N, 572R II, 583T, 587T, 953C, 963C, 973C, D10R, D10T, D11N, D11R, D5N, D6K2, D6K2 LGP, D6N, D6N LGP, D6N OEM, D6R, D6R II, D6R III, D6R STD, D6T, D7E, D7R II, D7R XR, D8R, D8R II, D8T, D9R, D9T, PL... |
| 2269663 HARNESS ASSEMBLY-PLATFORM |
| D6R III, D6T |
| 2269665 HARNESS ASSEMBLY-RH CONSOLE |
| 572R II, D6R III, D6T, D7R II |
| 2102509 HARNESS AS-TRANSMISSION |
| 572R II, D6R II, D7R II, D8R II |
| 3120269 HARNESS AS-PLATFORM |
| 572R II, D6R II, D7R II, D8R II |
| 2750068 HARNESS AS-RADIO |
| D7R II |
| 3554622 HARNESS AS-HEATER |
| D7R II |
| 3558915 HARNESS AS-POWER |
| D7R II |
| 3558916 HARNESS AS-WIRING |
| D7R II |
| 3089223 HARNESS ASSEMBLY |
| D6R III, D6T |
| 1750452 HARNESS ASSEMBLY |
| D6R II, D6R III, D6T |
| 2370049 HARNESS ASSEMBLY |
| 572R II, D6R III, D6T, D7R II |
| 2568776 HARNESS ASSEMBLY |
| D6R II, D6R III, D7R II |
| 2269665 HARNESS ASSEMBLY-RH CONSOLE |
| 572R II, D6R III, D6T, D7R II |
| 2269669 HARNESS ASSEMBLY-FUEL TANK |
| D6R III |
| 3645132 HARNESS ASSEMBLY-ENGINE |
| 938H, IT38H |
| 3006443 HARNESS ASSEMBLY-ENGINE |
| 938H, IT38H |
| 3623341 HARNESS ASSEMBLY-CHASSIS |
| 938H, IT38H |
| 3199349 HARNESS ASSEMBLY-CHASSIS |
| 938H, IT38H |
| 2986397 HARNESS ASSEMBLY-ADVISOR JUMPER |
| D6R II, D6R III, D6T, D7R II |
| 2269673 HARNESS ASSEMBLY |
| D6R III, D6T, D7R II |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 5K-5120 | [2] | STRIP | |
| 2 | 6P-4977 | [2] | SLEEVE | |
| 3 | 104-6729 | [1] | RETAINER | |
| 4 | 104-6730 | [1] | GASKET | |
| 5 | 204-6501 | [1] | ELBOW | |
| 6 | 205-7205 | [5] | SLEEVE | |
| 7 | 213-4540 Y | [1] | VALVE GP-RELIEF (MAIN) | |
| 8 | 220-4324 Y | [5] | VALVE GP-MODULATING (TRANSMISSION CLUTCH) | |
| 9 | 263-4081 | [1] | HARNESS AS-SENSOR | |
| 3S-2093 | [6] | STRAP-CABLE | ||
| 4P-7581 | [5] | CLIP (LADDER) | ||
| 4P-8134 | [1] | CLIP (LADDER) | ||
| 6J-2419 | [1] | SEAL-O-RING | ||
| 155-2270 | [7] | KIT-CONNECTING PLUG (2-PIN) | ||
| (EACH INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) | ||||
| 10 | 031-0218 | [2] | BOLT-LOCKING (3/8-16X0.5-IN) | |
| 11 | 0L-1352 | [3] | BOLT (3/8-16X3.25-IN) | |
| 12 | 0S-0509 | [2] | BOLT (3/8-16X0.75-IN) | |
| 13 | 1D-4540 | [10] | BOLT (5/16-18X2.75-IN) | |
| 14 | 2H-3932 | [2] | SEAL-O-RING | |
| 15 | 5F-4899 | [4] | BOLT (3/8-16X5.5-IN) | |
| 16 | 5M-2894 | [9] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 17 | 8M-4432 | [4] | SEAL-O-RING | |
| 18 | 8M-8157 | [10] | SEAL-O-RING | |
| 19 | 9M-1974 | [10] | WASHER-HARD (8.8X16X2-MM THK) | |
| 20 | 9X-2125 M | [2] | BOLT-LOCKING (M10X1.5X25-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
